Integrated Inverter Battery vs Separate Battery and Inverter: What a Home Buyer Should Know
Most home energy storage ships with the inverter built into the same cabinet as the cells, so you rarely need a separate one. This guide compares integrated inverter batteries with separate battery-and-inverter setups and shows exactly what to ask your supplier before you buy.
Most home energy storage today ships as one box: the inverter lives inside the same cabinet as the battery cells. You rarely need a separate inverter unless you are bolting storage onto an existing solar or power system. The choice between an integrated inverter battery and a separate battery-plus-inverter comes down to what you already have on site, how much you plan to grow, and how much you want a single supplier to be accountable for.
A home energy storage system from a dedicated factory is engineered as a sealed unit: the lithium cells, the battery management system, and a self-developed integrated inverter sharing one enclosure and one cooling path. That is why most households in Riyadh, Lagos, or Manila end up with a single cabinet instead of two boxes and a tangle of cable.
Why the Inverter Moved Inside the Cabinet
Three practical pressures pushed the industry this way. Less energy is lost when the inverter sits next to the cells instead of meters away through extra cabling. Installation shrinks to one bracket and one afternoon of an electrician's time. And when one manufacturer builds both halves, a fault has a single throat to choke - you are not bouncing between a battery maker and an inverter maker who each point at the other.

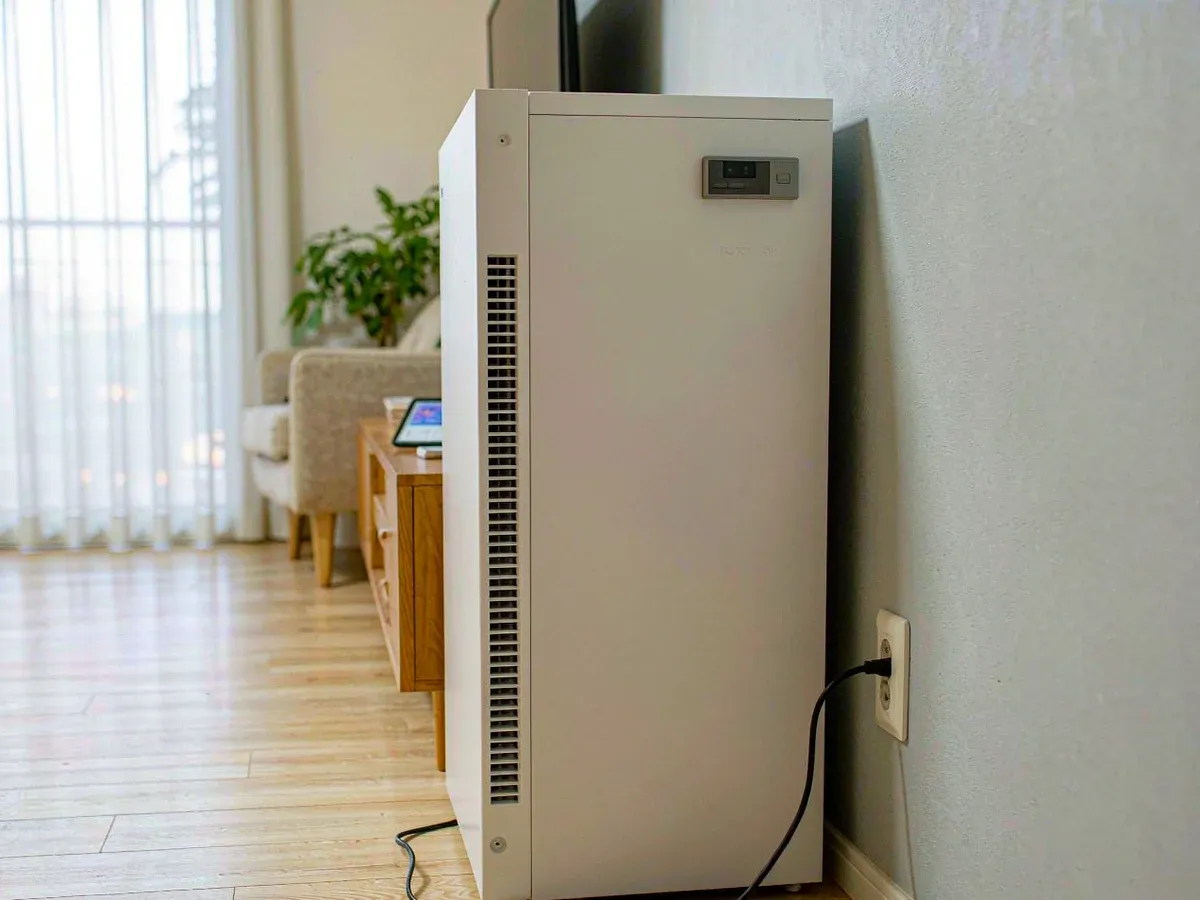

A floor-standing cabinet with the inverter on the back plane and LiFePO4 cells in the middle is the common result. Nothing to pair, nothing to mismatch. A homeowner with evening load-shedding and a small rooftop array can be running the day the unit is mounted.
What a Separate Battery-and-Inverter Setup Looks Like
The older design treats the battery as a dumb box and places a standalone inverter beside it. It still makes sense in three situations. You already own a hybrid or off-grid inverter and only want to add storage behind it. Your existing array is AC-coupled, so the panels feed the grid through their own inverter and the battery must sit on the AC side. Or your property spreads past roughly 20kWh of storage, where sizing the inverter independently of the battery gives real flexibility.
In those cases you buy a battery cabinet and a separate inverter and wire them together. The trade is more boxes and more cable for the freedom to mix brands and scales. A 20kWh home system built this way leaves room to grow, but the ease of one box is gone.
Integrated vs Separate: The Trade-offs That Matter
For most households the difference shows up in four places. Footprint: one cabinet needs one wall or floor spot; a separate build needs two and the runs between them. Failure points: fewer connectors means fewer things to loosen in a humid coastal climate. Accountability: one vendor covers the whole unit. Expandability: a separate design lets you swap the inverter years later without touching the battery, which matters if your loads change.
On raw performance the gap is small for typical homes. A well-built integrated inverter delivers the same continuous and surge ratings as a quality standalone unit of equal spec. The deciding factor is usually the install site and what you already own, not a power number on a brochure.
How to Decide for Your House
Five questions settle it before you spend a cent. Do you already have panels on the roof, and if so how are they coupled? Is your property a single dwelling under about 20kWh of storage? Are you retrofitting behind an existing hybrid inverter? Do you expect to add capacity in three years? And what is your available wall or floor space? Answer those and the topology picks itself for the vast majority of homes.
When the goal is basic backup for a larger home, a 16kWh villa system with the inverter built in covers most houses without a second box. A 20kWh home system gives headroom for a pump, a fridge, lights, and a router through a long outage, all from one enclosure.
Technical Notes Most Listings Skip
Two numbers decide whether the inverter is adequate, and most spec sheets bury them. Continuous output in watts must clear your essential loads with headroom - a villa running a fridge, lights, a water pump, and a router needs more than a one-room backup. Surge rating matters for motor starts; a borehole pump or an air conditioner can pull several times its running watts for a second. Match the inverter to your worst minute, not your average hour.
Sharing one enclosure also means one cooling path. In hot climates ask how the cabinet manages heat, because an inverter throttling inside a sealed box quietly cuts the power you thought you had. Lithium iron phosphate cells handle heat better than older chemistries, and a traceable cell grade report is something any serious supplier should hand you. We build with Lishen Grade A cells and a self-developed integrated inverter, and you should expect equivalent transparency from whoever quotes you.
The paperwork to request is short. UN38.3 test reports and MSDS travel with the shipment as standard shipping and safety documents. Ask each bidder for their inverter's certifications by name rather than taking a sticker on faith - request the UN38.3 and MSDS as a baseline, then ask what else applies to your market.
When Each One Fits
Integrated wins for new builds, first-time storage, villas and townhouses up to roughly 20kWh, and anyone who wants the electrician in and out in a day. A look at how integrated inverters handle loads helps you read a spec sheet critically instead of trusting the largest printed number.
It does not win when you are adding storage to a bespoke existing system, when you need to scale the inverter and battery on different timelines, or when your existing inverter already does the job and you only need cells behind it.
What to Ask Your Supplier
Hand over five things and you get a correct answer instead of a generic quote: your essential load list in watts, whether you have existing solar and how it is coupled, your daily outage or load-shedding pattern, your available wall or floor space, and your AC voltage. Single-phase 220/230V is common across Asia, Africa, the Middle East, and Latin America, while some sites run three-phase - name it so the factory sizes the inverter correctly.
FAQ
Can I add storage to panels I already own?
Usually yes. If your existing array feeds an inverter already, an AC-coupled battery cabinet connects on the output side without touching the panels. If the system is older or the inverter lacks the right port, a separate hybrid inverter plus battery is the cleaner retrofit. Bring your current inverter model to the conversation so the factory can check compatibility before you order.
Does an integrated inverter fail more often?
No more than a separate one, and often less, because there are fewer connectors and external cables to loosen or corrode. The risk shifts from wiring to a single device - which is exactly why you want one accountable manufacturer and a clear support path. Ask for the inverter's mean-time-between-failure figure and read it next to the warranty.
Is a separate inverter better for a large home?
Not automatically. A 16kWh villa system with a self-developed integrated inverter covers most large homes without a second box. Separate earns its place only when you exceed roughly 20kWh, split the load across buildings, or must keep the inverter and battery on different upgrade cycles. Size the problem, not the fear.
How do I know the inverter is sized right?
Add up the watts of everything you want live during an outage, then add the surge of the hardest motor-driven load. If the inverter's continuous rating clears the sum with 20 to 30 percent headroom and its surge rating clears the pump or compressor start, you are safe. Reading a spec sheet this way turns marketing into math.
Will a separate inverter give me more backup time?
Backup time comes from battery capacity in kWh, not the inverter. The inverter only sets how much load you can run at once. A 16kWh integrated unit and a 16kWh separate-inverter unit give the same runtime at the same load; the separate setup just costs more to wire and support. Buy capacity for hours, buy inverter rating for watts.
